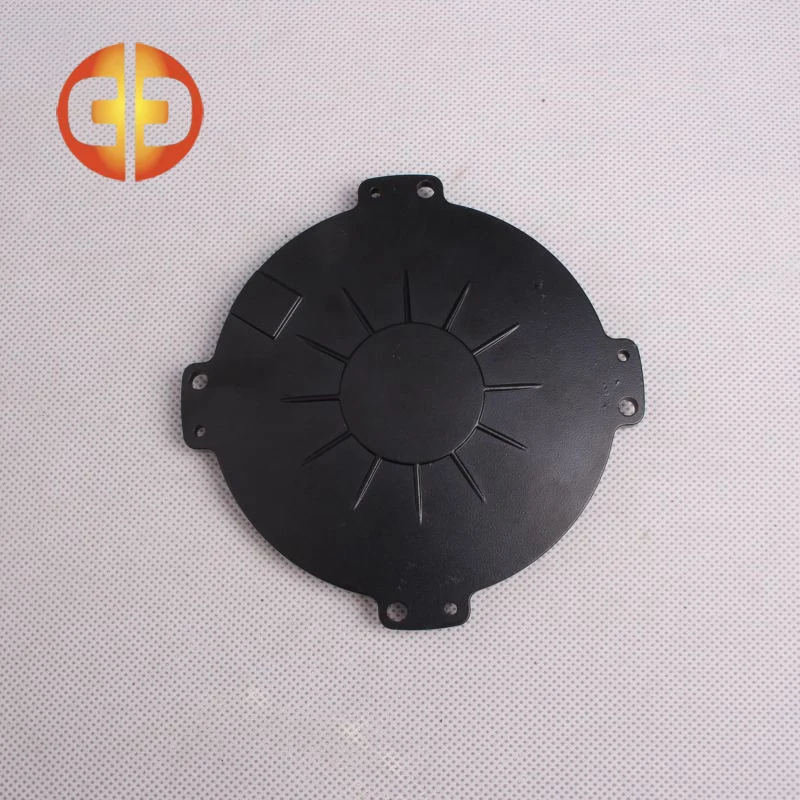

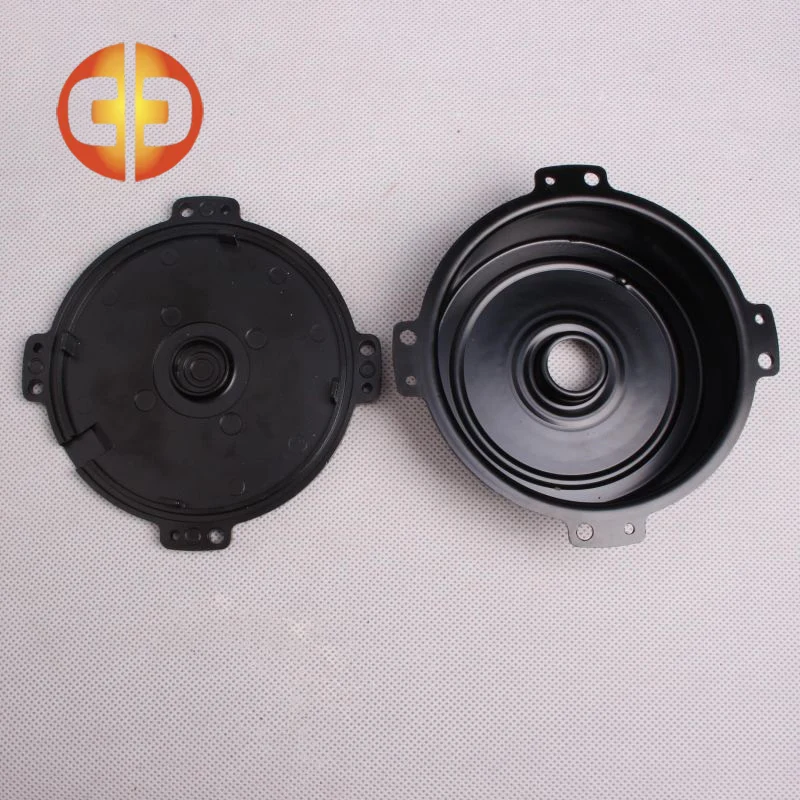

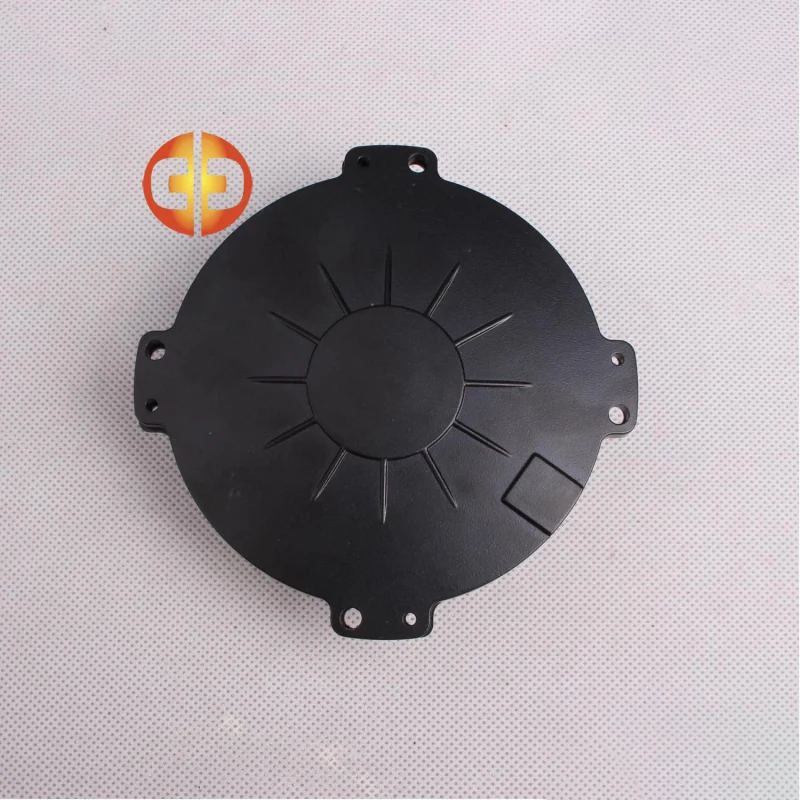

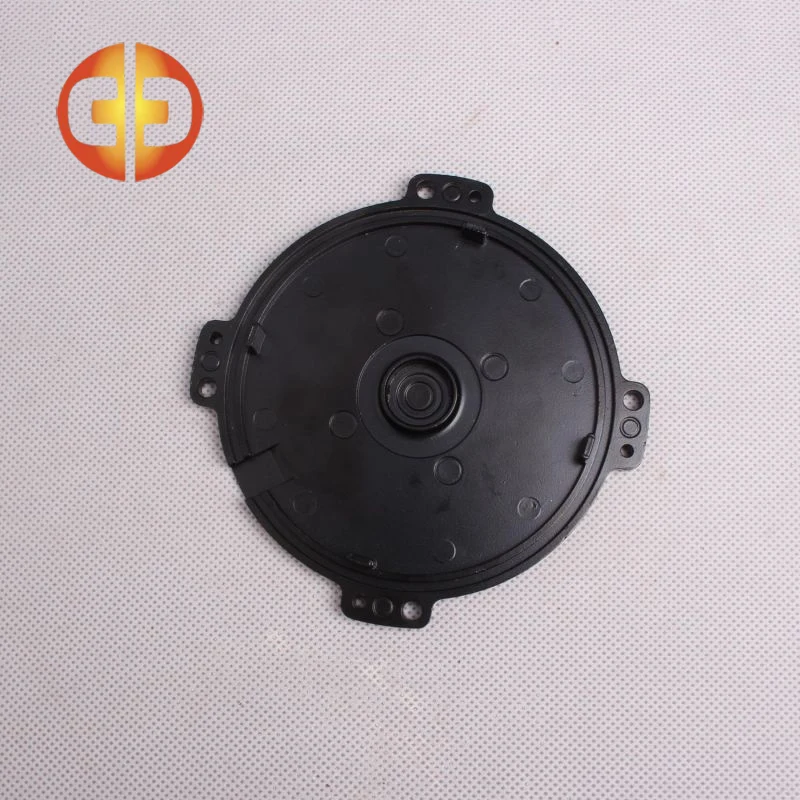

Motor Dc Motor Case

Role of DC motor housing

Protection of internal parts: The shell of DC motor can protect its internal coils, poles, commutator and other key parts from the damage of the external environment, such as dust, moisture, impact and so on.

Heat dissipation: during the operation of the motor, the shell can effectively transfer the heat generated inside to ensure the normal operating temperature of the motor.

Fixation and support: The casing provides stable support and fixation for the motor to prevent it from shaking or shifting during operation.

Material of DC motor casing

The material of DC motor casing is usually chosen to have good mechanical properties, corrosion resistance, heat resistance and processing performance. Common materials include:

Metal materials: such as cold rolled steel plate, aluminum alloy, etc.. These materials have high strength and hardness, and can withstand the vibration and impact force generated by the motor during operation. At the same time, they also have good thermal conductivity and can effectively transfer heat out.

Plastic: In some specific application scenarios, such as household appliances and small power tools, plastic may be chosen as the material for the motor housing. Plastic material housing has the advantages of light weight, low cost and easy processing.

Design of DC motor casing

The design of the DC motor casing needs to consider a number of factors, including the size of the motor, power, working environment and so on. A reasonably designed casing can effectively improve the heat dissipation performance of the motor, reduce noise and vibration, and enhance the overall aesthetics of the motor.
