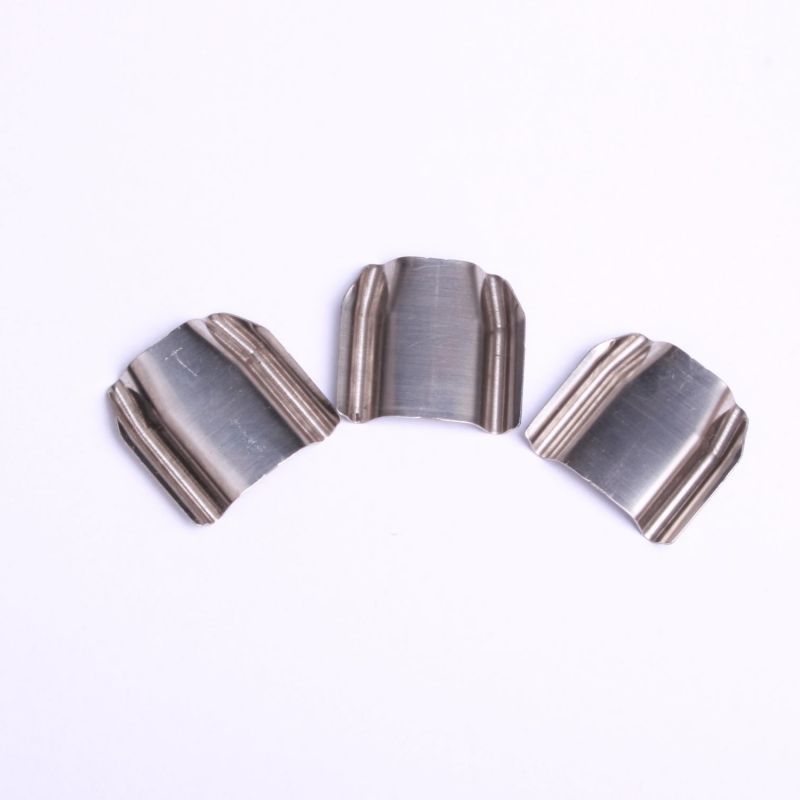

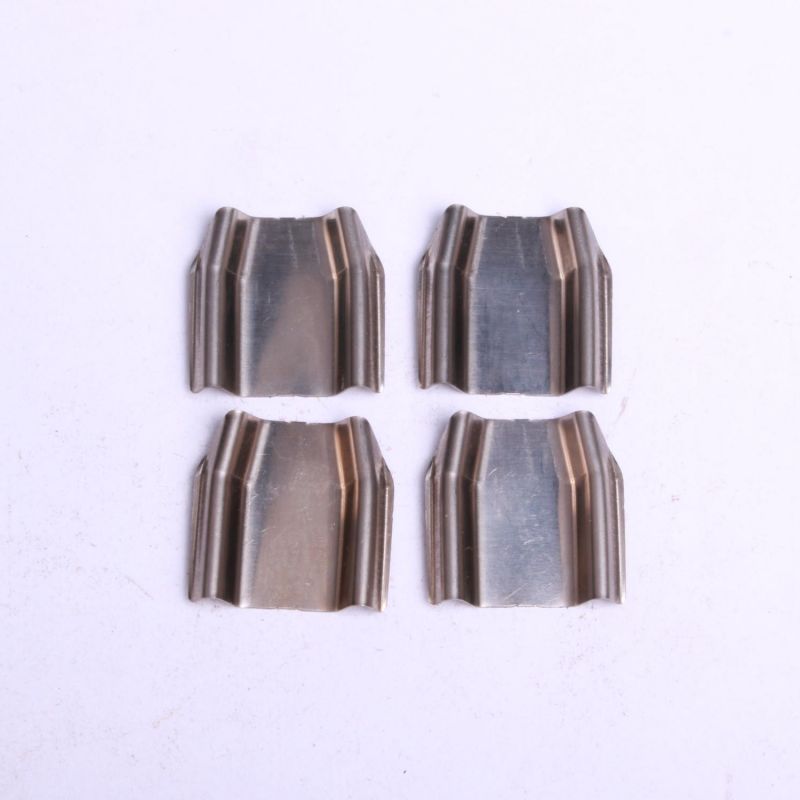

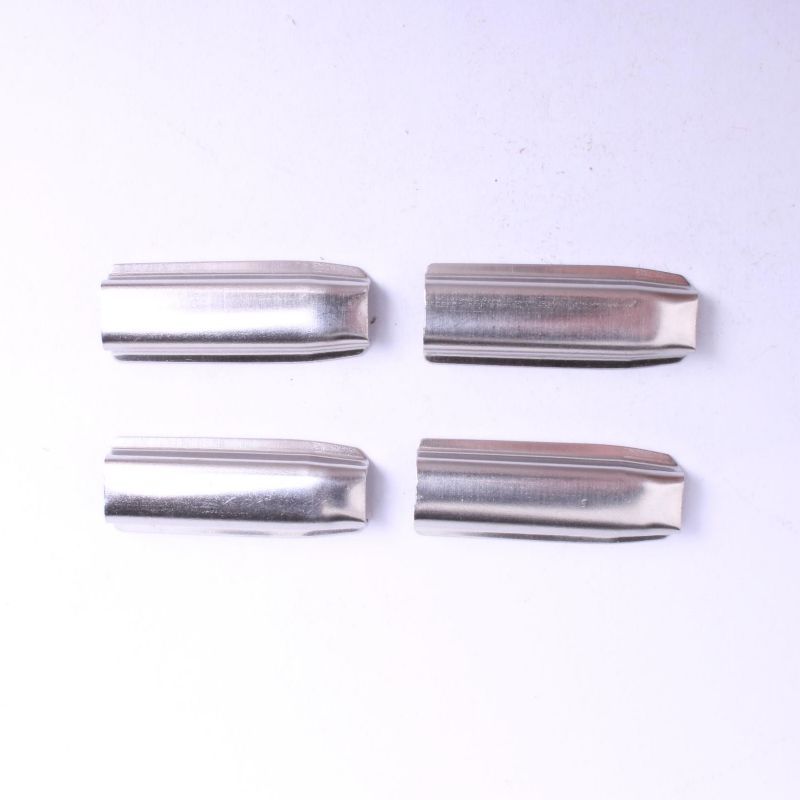

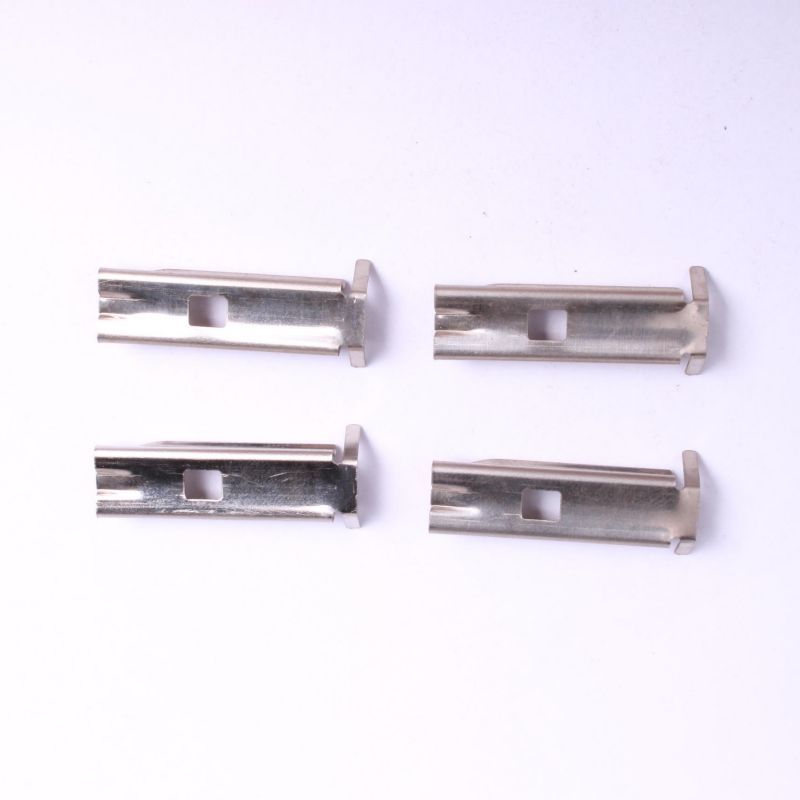

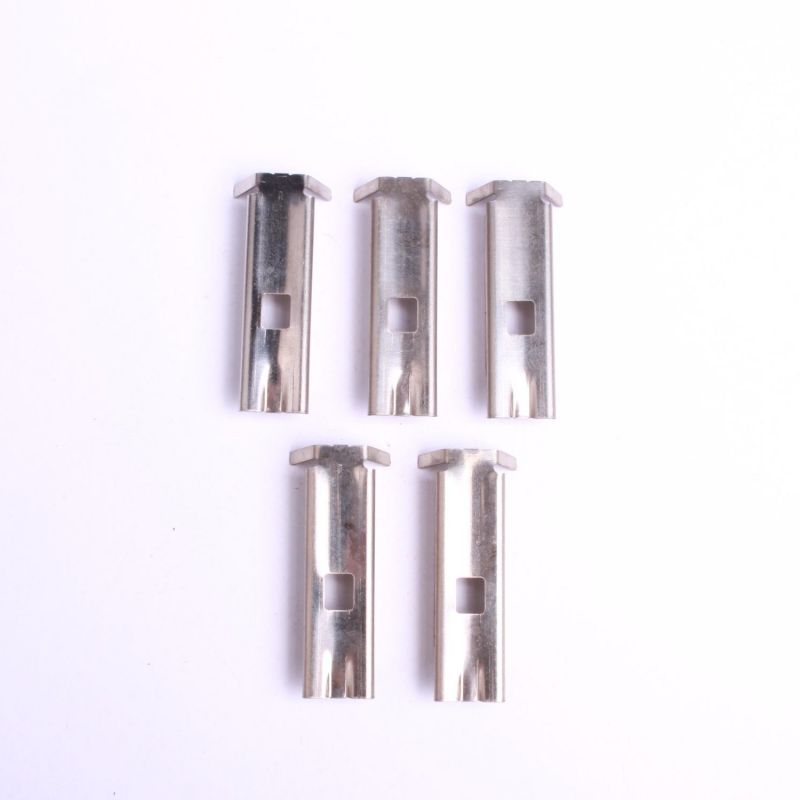

High-precision motor magnetic tile fixing clip

High-precision motor magnetic tile fixing clip

[Product Overview]

The magnetic tile clip is a crucial precision component used to secure magnetic tiles to the housing in permanent magnet motors. Yaodong Zhizao's magnetic tile clips, leveraging its profound knowledge in materials science and mold technology, address the industry's pain points of magnetic tile loosening and displacement under high-speed rotation, high temperature, and vibration conditions.

[Core Competitive Advantages]

Excellent physical properties: Made from high-quality 65Mn material sourced from both imported and domestic first-tier manufacturers, the spring undergoes continuous heat treatment through precise temperature control, ensuring that it maintains 100% in-place rebound even after extreme compression, providing long-lasting and stable clamping force.

Precision manufacturing and high consistency: Utilizing fully automated production with progressive dies, the key dimensional tolerances are controlled within ±0.02mm. The high consistency ensures no material jamming or missing parts in the automated production line, significantly improving the motor assembly pass rate.

Corrosion resistance and longevity: For harsh environments such as automotive motors, we provide surface treatment solutions that have undergone neutral salt spray testing for over 24 hours, ensuring no rusting or brittle fracture in humid and oily environments.

Unique tooth structure design: The edges have undergone special chamfering treatment, and reinforcement ribs or anti-slip teeth can be designed according to the requirements of the customer's motor housing inner wall, effectively preventing the magnetic tiles from displacing under high-frequency vibration of the motor.

[Application Scenario]

Automotive field: starter motor, ABS motor, wiper, window regulator motor, electronic fan. Home appliance field: washing machine drain pump motor, vacuum cleaner, high-speed motor for blender. Industrial equipment: electric tools, water pump motor, garden machinery, micro stepper motor.

[Manufacturer Service]

Rapid prototyping: With an independent mold workshop, we can produce samples in as fast as 30-50 days.

Technical support: Provide customers with force analysis and structural optimization suggestions for magnetic tiles.
