Capacitor Inductor Carbon Brush Holder Assembly

Capacitor

Capacitor is an electronic component capable of storing electric charge, which consists of two conductors (pole plates) with equal but opposite charges and an insulating medium between them. Capacitors are widely used in electronic equipment for filtering, energy storage, coupling, bypass and other circuits.

Inductor

An inductor is an electronic component capable of storing magnetic energy. It is made of wire wound in the shape of a coil, which generates a magnetic field around the wire when current is passed through it. Inductors are often used in electronic devices for filtering, oscillation, delay and other circuits.

Carbon Brush

Carbon brushes are a commonly used electrically conductive element made of conductive materials such as carbon and graphite, and are usually used in rotating equipment such as electric motors and generators to transfer current in contact with the commutator or collector ring. Carbon brushes have good electrical conductivity, abrasion resistance and self-lubrication to ensure the stable operation of the motor or generator.

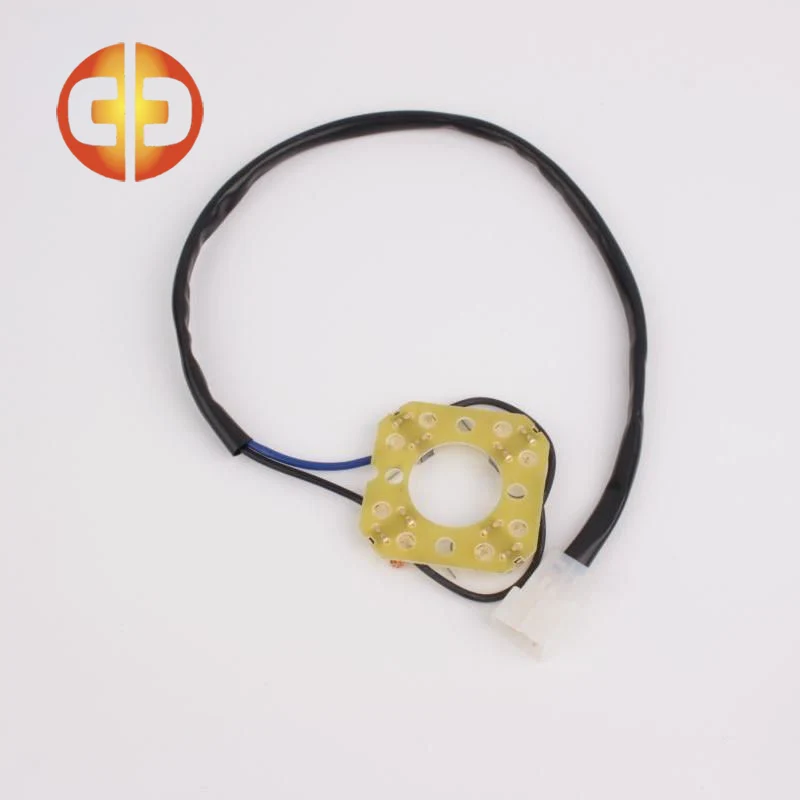

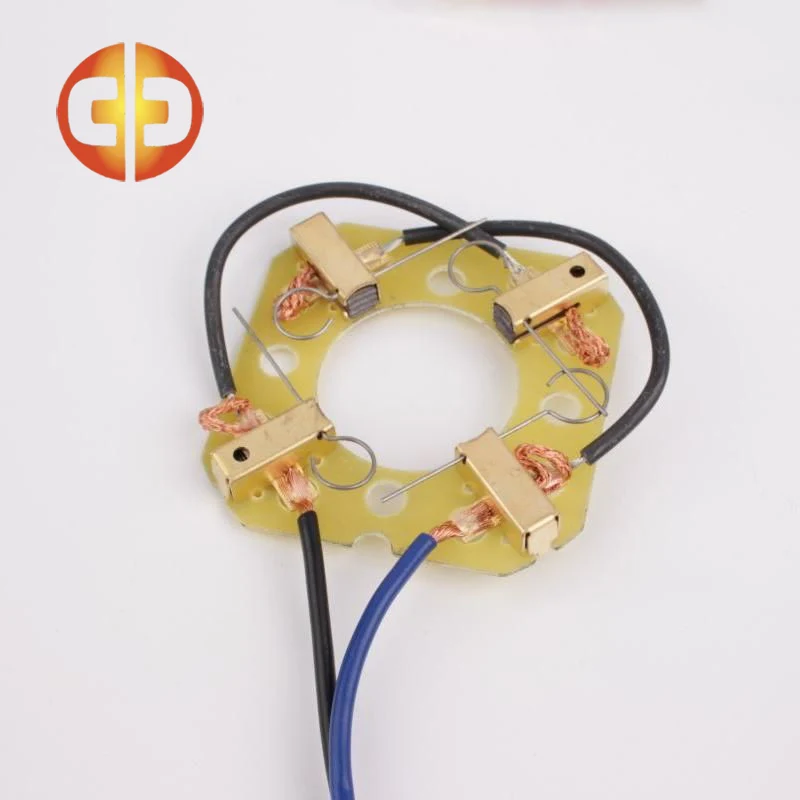

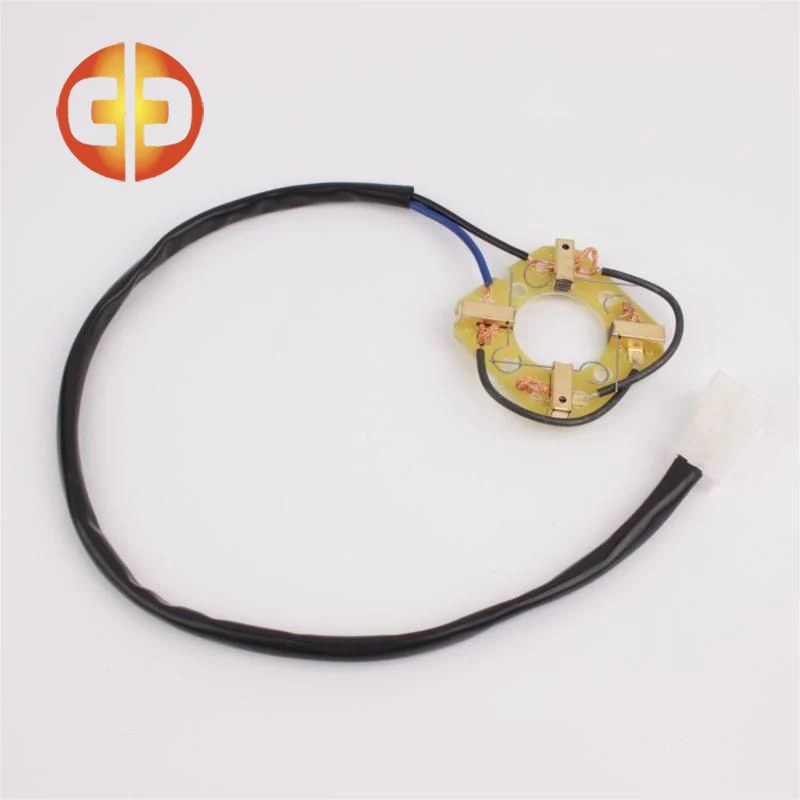

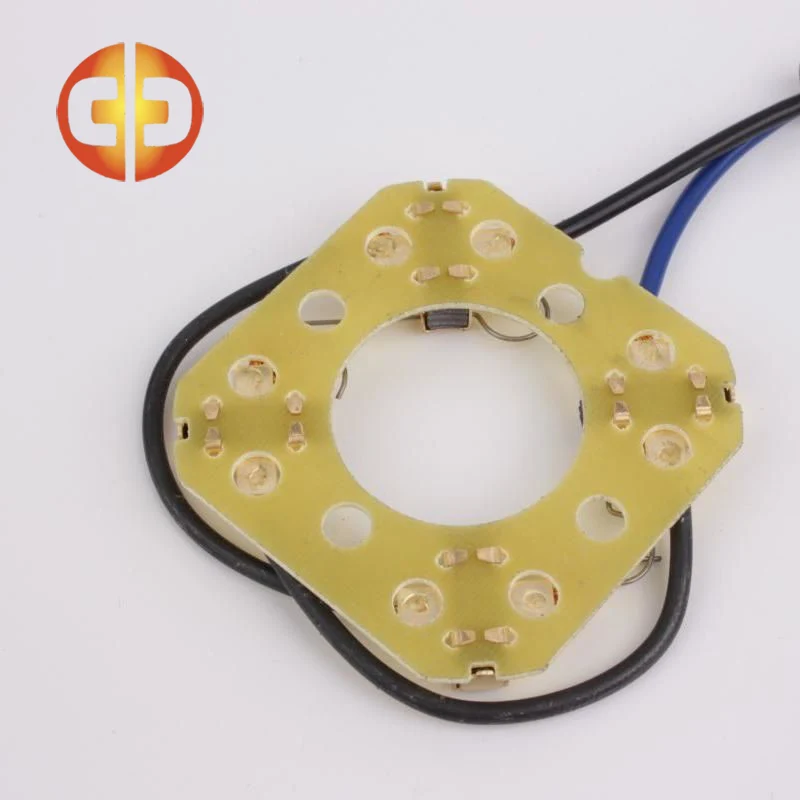

Carbon Brush Holder Assembly (CBHA)

Carbon Brush Holder Assembly is an important part of an electric motor or generator that holds and supports the carbon brushes, which usually consists of brush grips, brush holders, brush springs and other components. The design and structure of the carbon brush holder assembly ensures good contact between the carbon brushes and the commutator or collector ring, and at the same time withstands the mechanical stresses of the motor or generator during operation.

In a Capacitor Inductor Carbon Brush Holder Assembly, these components may work together to form a complex circuit system for a specific electrical function. For example, in an electric motor, capacitors and inductors may be used to filter and oscillate circuits to ensure current stabilization and smooth motor operation, while carbon brushes and brush holder assemblies are used to transfer current and ensure continuous motor operation.
