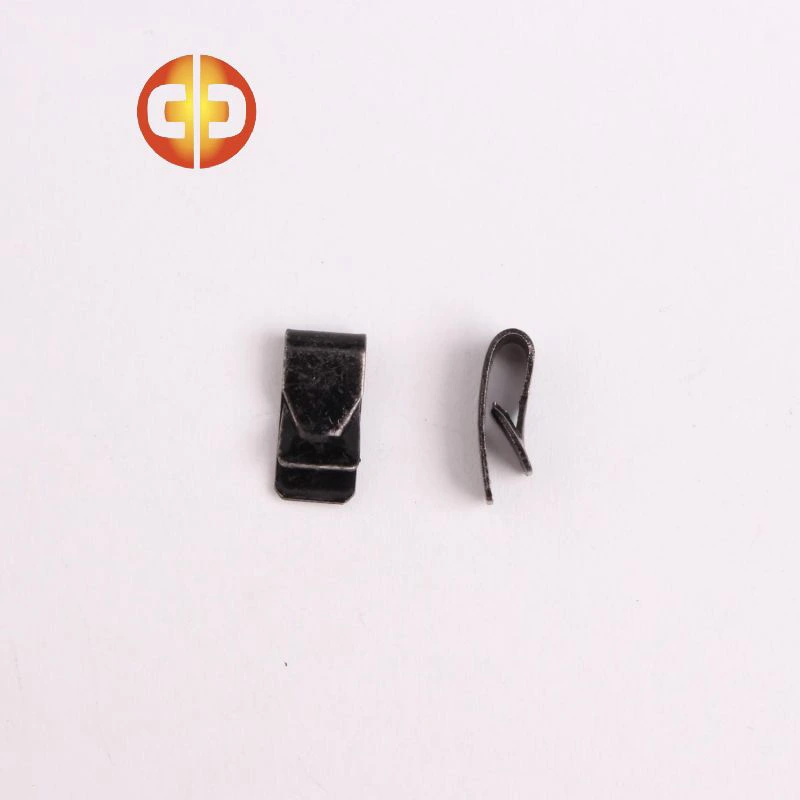

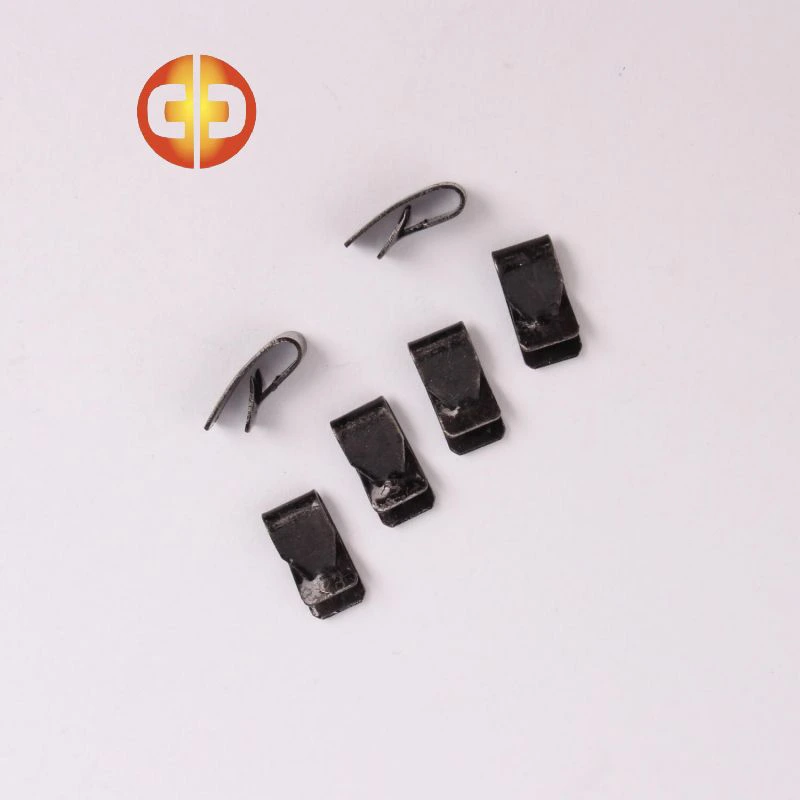

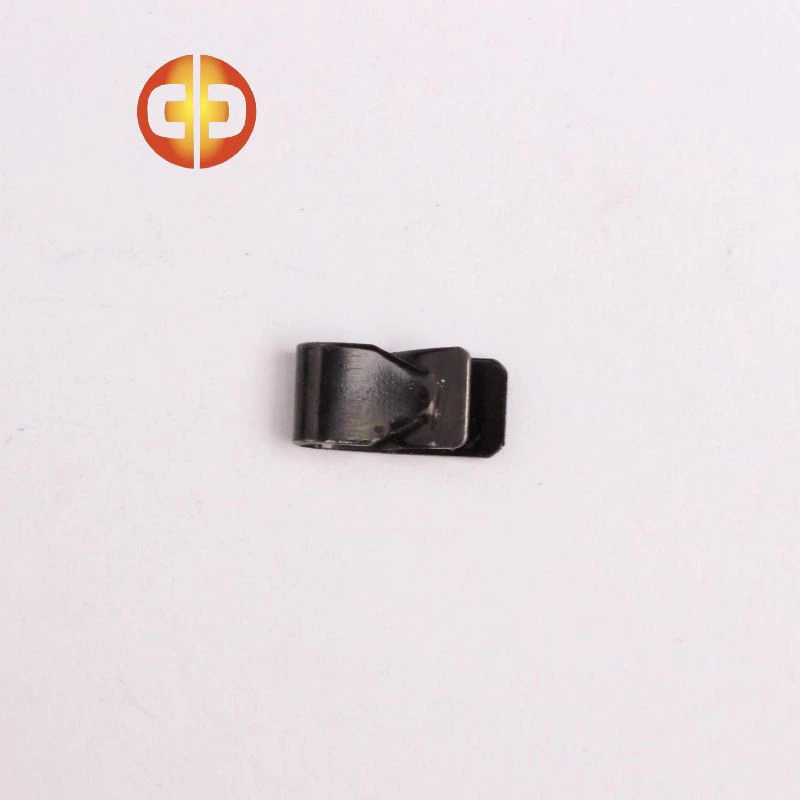

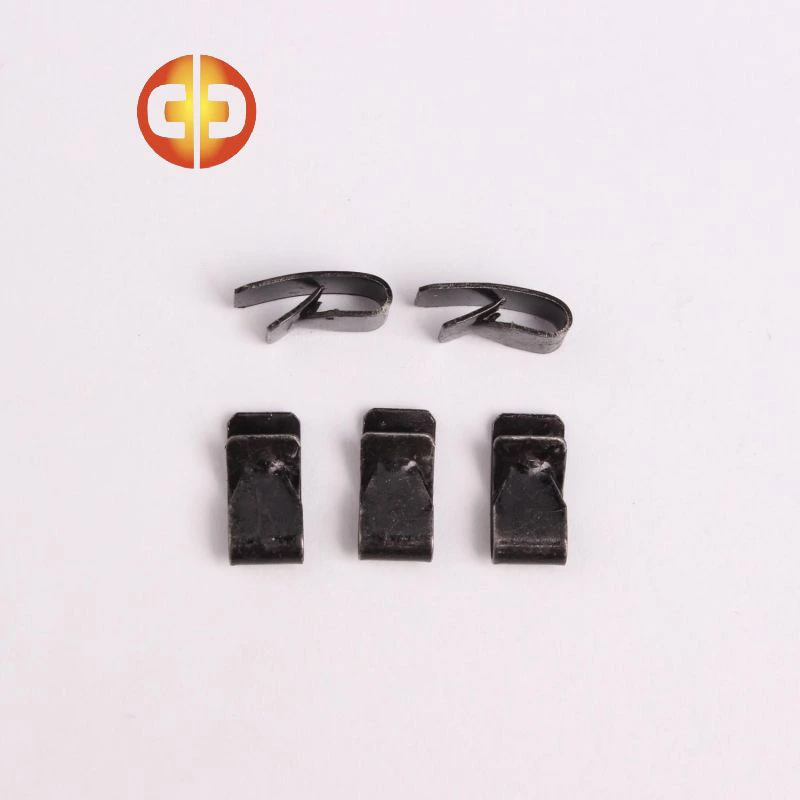

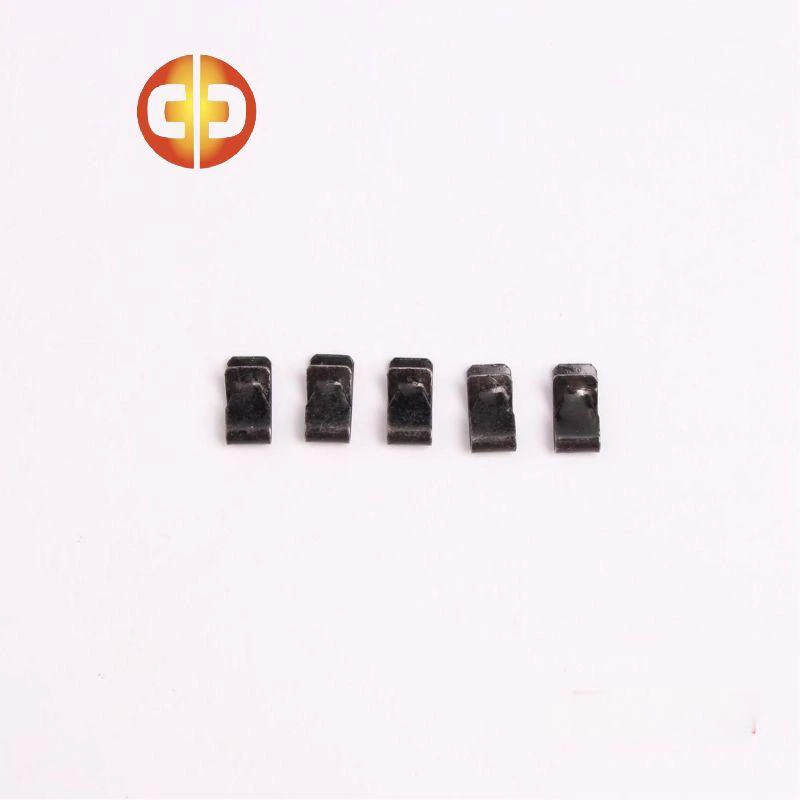

65mn Balance Clamp 0.3gb

Blade balance clamp, 65Mn balance clamp 0.3gB

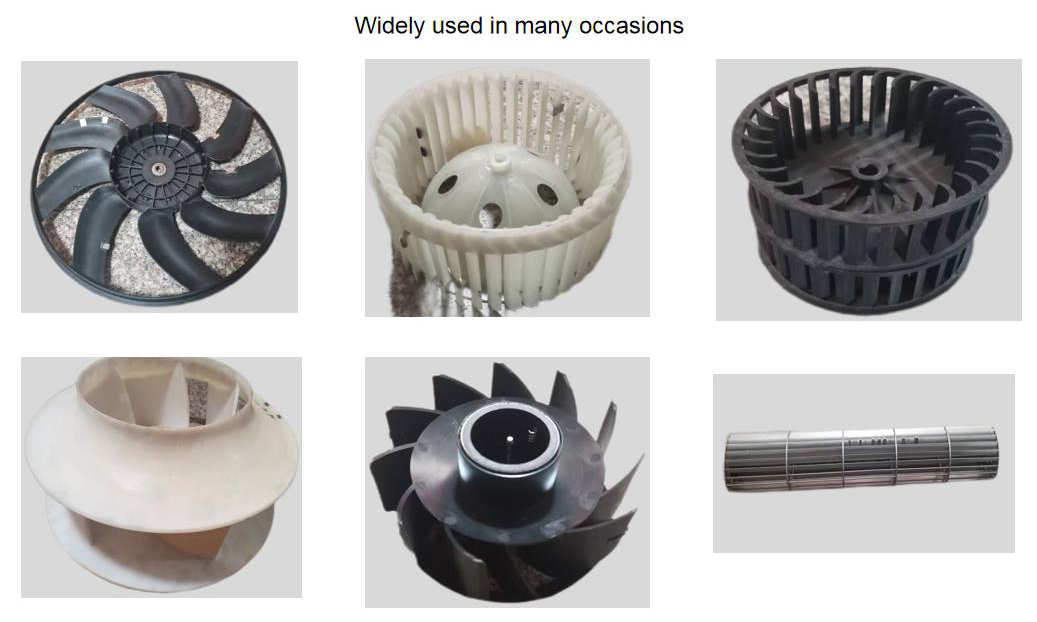

● Balance clamp is a product used to correct the balance of wind blades and rotors. Generally, there are two types of materials: stainless steel and manganese steel. Widely used for dynamic balance correction of axial flow blades, cross flow blades, centrifugal blades, and wind turbines.

● The weight generally ranges from 0.05 grams to 20 grams. The commonly used specifications are below 7 grams. 0.05 to 0.5 grams or less is suitable for axial and centrifugal blades, while 0.6 grams or more is suitable for large blades such as wind turbines.

● The function of the balance clamp is to correct the vibration and noise of the wind turbine and blades during high-speed operation. The dynamic balance of the fan not only affects the service life of the product itself, but also endangers personal safety in case of incorrect use.

● The substitutability of the balance clamp is weak, and some fans can use methods such as glue dispensing or knife cutting, but it cannot accurately register the weight. The correct use of balance clamps can solve the problem of prolonging the service life and reducing the noise of the motor during high-speed operation from the root

The correct installation method for the balance clamp!

Please select the front and back sides of the blade clamp correctly according to the rotation direction of the fan blade, so that their fitting surfaces completely match the fan blade. This can reduce the noise during the rotation process and also reduce the phenomenon of the blade clamp slipping off during high-speed rotation.

Attention: The fan blade card that has already been installed is not conducive to slipping and disassembly due to the backstitch; If disassembling, please use tools to assist in prying up the barbed angle and slowly remove it from the fan blade; Or seek professional assistance in dismantling. Do not pry open randomly to avoid injuring your fingers or causing the balance clip to fly into your eyes or other parts of your body.
