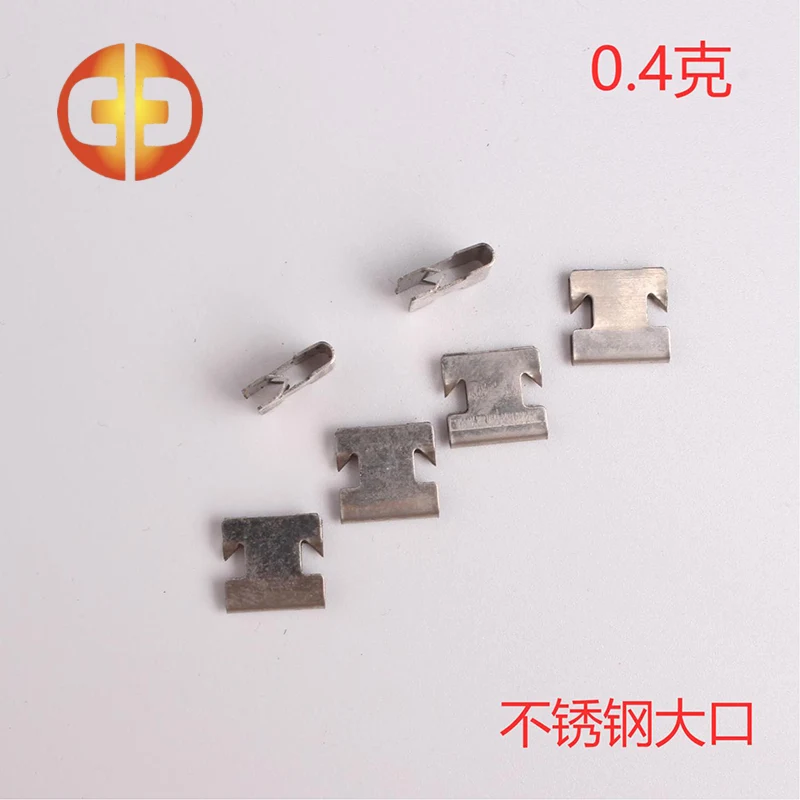

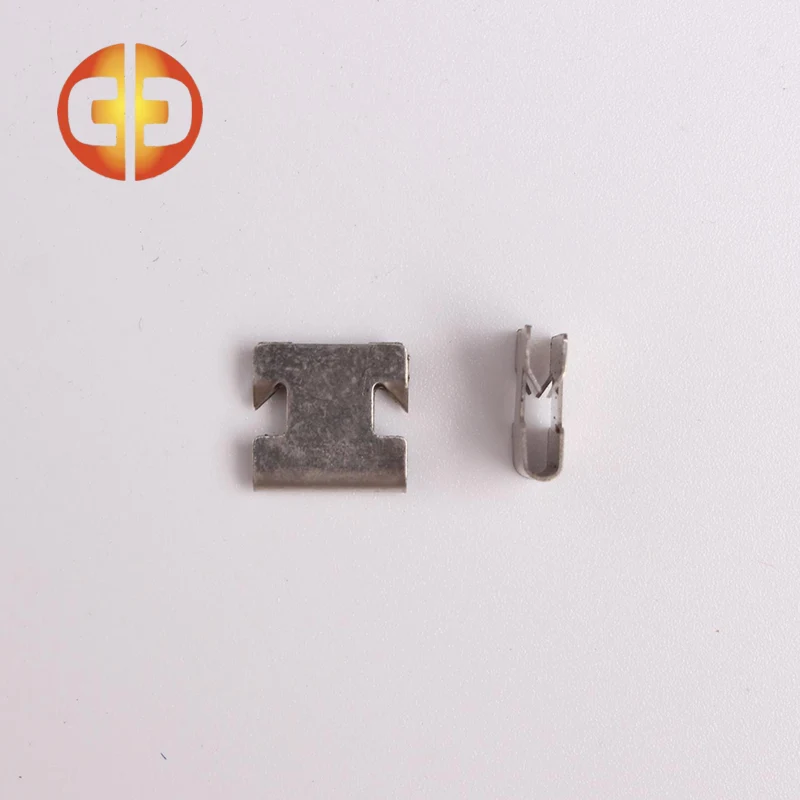

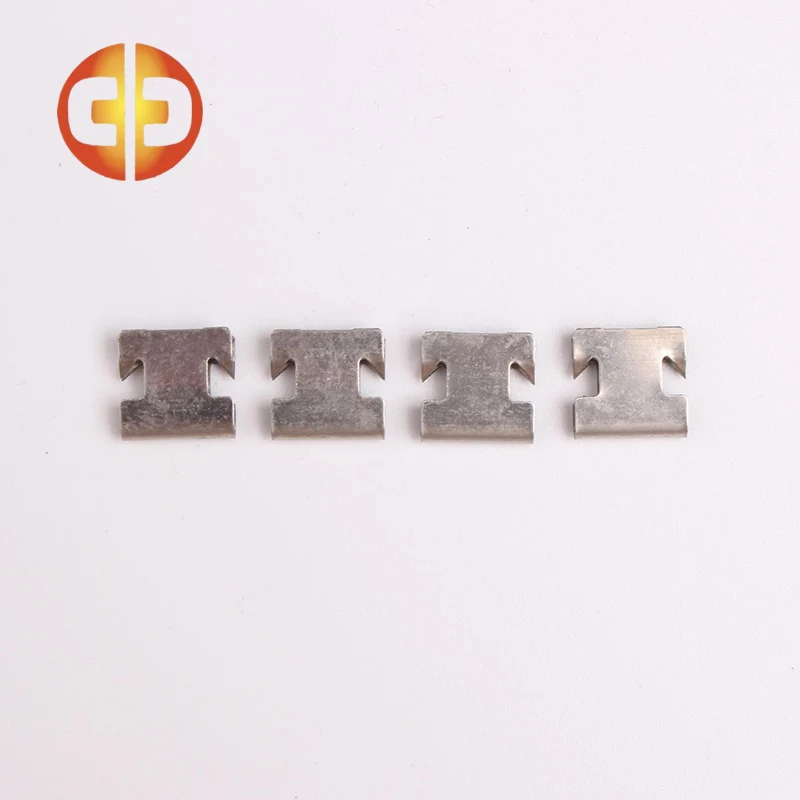

Axial Balance Clamp

I.Working Principle

The working principle of axial balancing clamps is based on the principle of balance in physics. When a rotating part is spinning at high speeds, if its mass is not evenly distributed, centrifugal force is generated, resulting in vibration and noise. Axial balancing clamps are used to adjust the centre of gravity of a rotating part by adding or removing the right amount of mass (usually in the form of small pieces of metal or alloy) to bring it into a state of dynamic equilibrium.

II.Application Areas

Axial Balance Clamps are widely used in a variety of mechanical systems that require high speed rotating parts, including but not limited to:

Aircraft engines and gas turbines: In these high-performance power units, the balance of rotating parts is crucial to ensure stable engine operation and prolong service life.

Wind turbines: The blades of wind turbines rotate at high speeds in strong winds and must be well balanced to avoid vibration and damage.

Centrifuges: Centrifuges are used in industries such as chemical, pharmaceutical and food processing to separate different components of a mixture. The balance of its rotating parts is equally important to ensure separation results and equipment safety.

III. Types and structures

Axial balancing clips are available in a wide variety of types and configurations, depending on the application and the characteristics of the rotating components. Generally speaking, they may include the following parts:

Base: used to fix the axial balancing clamp and attach it to the rotating part.

Adjustment block: usually made of metal or alloy, used to add or remove mass to adjust the balance.

Locking mechanism: used to hold the adjusting block in place and prevent it from moving during rotation.
